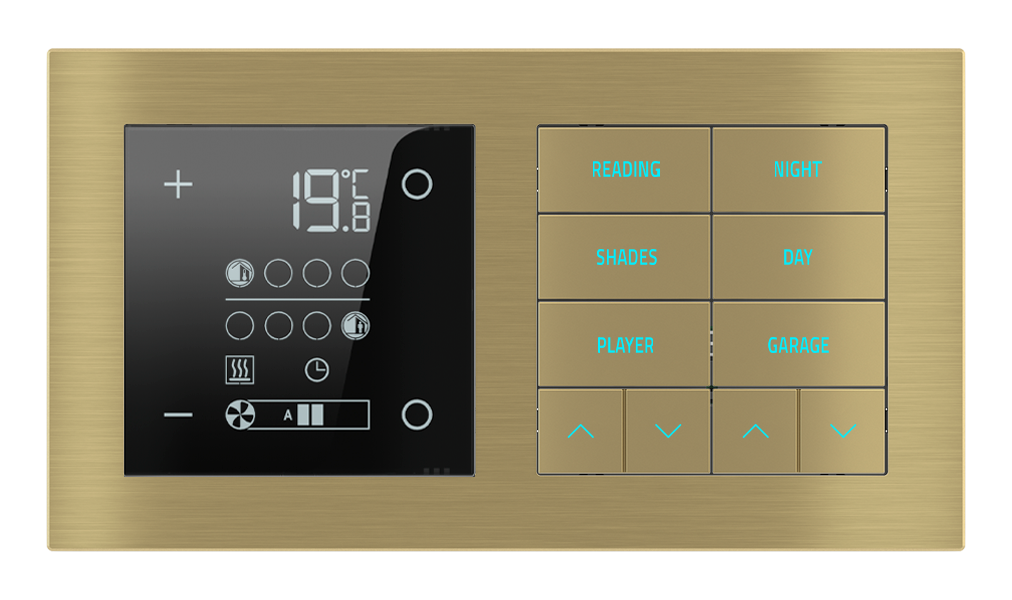

  • Room temperature controller and 10-fold pushbutton with backlit text/symbols and proximity sensor for 2-fold plate Room temperature controller and 10-fold pushbutton with backlit text/symbols and proximity sensor for 2-fold plate
  • Room temperature controller and 10-fold pushbutton with backlit text/symbols and proximity sensor for 2-fold plate Room temperature controller and 10-fold pushbutton with backlit text/symbols and proximity sensor for 2-fold plate
  • Room temperature controller and 10-fold pushbutton with backlit text/symbols and proximity sensor for 2-fold plate Room temperature controller and 10-fold pushbutton with backlit text/symbols and proximity sensor for 2-fold plate
  • Deep
  • Surface
  • 3D view
Description

The Ekinex® room temperature controller of 71 series regulates independently the temperature of a room or a zone. In combination with one or more KNX actuators, the room temperature controller is able to control the heating and cooling emission of a series of terminal units for the thermal exchange (such as radiators, fan-coils, floor and ceiling radiant panels, etc.). The device is provided with a LCD-Display with adjustable backlight, and a sensor for temperature measuring. The device integrates a KNX bus communication module and is intended for mounting onto a wall mounting box; it is powered by a SELV voltage directly from the KNX bus and does not require any auxiliary power supply.

Technical data
  • 30 Vdc power supply by KNX bus
  • Current consumption from bus < 13 mA
Delivery

Delivery includes a terminal block for connection to the bus, two pairs of fixing screws.

Pushbutton

The Ekinex® 20venti series 10-fold pushbutton is used for on/off control of utility devices, dimming of luminaires, control of motorized drives for roller shutters or other programmable control functions. Thanks to the integrated temperature sensor, the button can act as a temperature controller for a room or zone. RGB LED for each rocker. The switch has an integrated KNX bus communication module and is designed for installation in a flush-mounted wall box.

Technical data
  • 30 Vdc power supply by KNX bus
  • Current consumption from bus < 17 mA
Delivery

Delivery includes a terminal block for connection to the bus, two pairs of fixing screws.

Accessories

The following accessories are available to be ordered separately:

  • 6 rectangular 30 x 15 mm plastic rockers with or without backlit text/symbol and 2 rectangular 30 x 15 mm plastic rockers for adjustments
  • double plate of the Deep and Surface version with 60 x 60 mm window
  • a plastic adapter
  • a metal support for installation onto round or square mounting box (fixing holes 71 mm apart)
Functions / Features
Temperature Controller
  • LCD-Display with adjustable backlight
  • 4 capacitive pushbuttons for controlling of the thermostat functions
  • Integrated temperature sensor
  • Plastic casing
  • Connection to bus line with KNX terminal block
  • Frontal programming pushbutton and LED
  • Wall-mounting installation on round or square wall box
  • IP20 protection degree (installed)
  • Weight 90 g (with mounting support)



Pushbutton
  • 10 fold version (possibility to configure up to 10 independent functions plus 4 paired keys for adjustments)
  • RGB LED for each freely programmable button
  • Integrated temperature sensor
  • Integrated proximity sensor
  • Room thermostat function
  • Plastic casing
  • Connection to bus line with KNX terminal block
  • Wall-mounting installation on round or square wall box
  • IP20 protection degree (installed)
Configurationa and commissioning

A detailed description of the parameters can be found in the application manual of the device. Configuration and commissioning require ETS5 or later versions. ETS application program: APEKE20TP##.knxprod (## = release).

Do you want to configuring your product and create a tailor-made project for you?
With Ekinex Planner you can define the needs of a system, choose the most suitable finishes and give a personal touch to the buttons.

Go to the Planner
